LabCeph 2.0 (Freeware)

LabCeph free version is a free software for cephalometry.

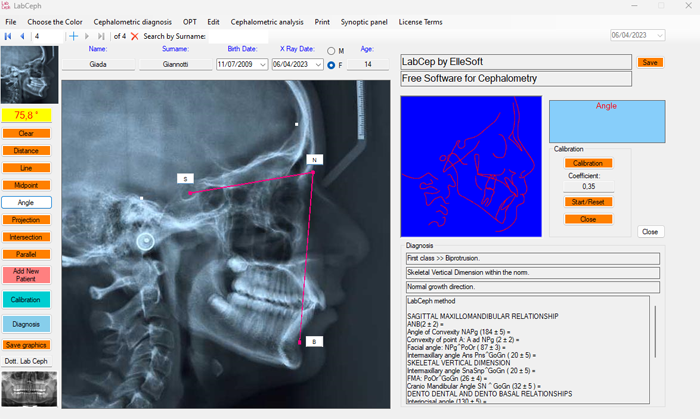

LabCeph is used to perform all types of cephalometric measurements on the imported image.
allows you to perform fully customizable cephalometric analyses.

LabCeph Free can be used freely and without time limits.

LabCeph 2.0 PRO

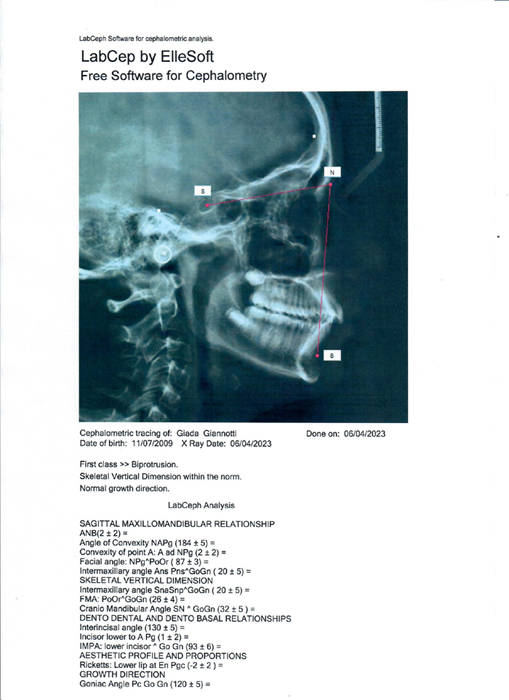

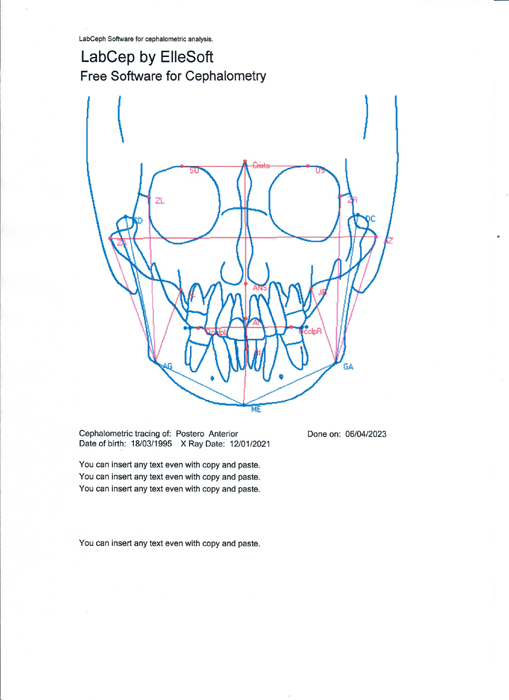

Compared to the free version, LabCeph Pro allows you to print the trace with your own header.

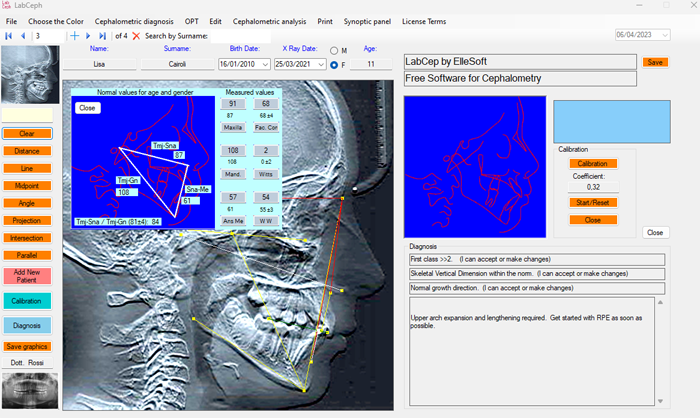

In the synoptic table accompanying the diagnosis, the following values are highlighted, automatically calculated on the basis of the age and gender of the subject in question:
HARWOLD'S TRIANGLE
Maxilla length = TMJ-Ans (posterior superior point of the condyle – anterior nasal spine)
Mandible length = TMJ-Me (posterior-superior point of the condyle-Me automatically normalized to Gn)
Lower Facial Height = Ans – Me
----------------------------------------------

WITS index = distance between the projections of A and B on the occlusal plane which evaluates the relationship on the sagittal plane between the bone bases.
Ricketts facial Convexity: NPg^GoGn assessing skeletal vertical dimension.
Wendell-Wilie index: proj. Ans on NMe-Me/NMe which evaluates the ratio of lower facial height to total facial height.

The ratio between maxilla length and mandible length is also calculated, which also evaluates the ratio between the bases

Further values can of course be calculated independently and stored in the Notes overview.

.
